A piling machine, a broad term that includes equipment like piledrivers, piling rigs, pile boring machines, drill rigs, and rotary drills, plays a critical role in construction for establishing strong foundations. Although these terms are often used interchangeably, they refer to distinct machine configurations and applications. Understanding these differences is essential for selecting the right equipment for specific construction needs.
At the heart of a piling machine is its base structure, usually a crane or excavator modified for foundation work. Leading manufacturers like Liebherr and Sennebogen, who often call these machines “baggers,” have created specialized rigs for this reason. For instance, an excavator-based machine features a shorter, horizontally aligned boom to support a vertical leader mast, while a crane configuration positions the mast at the peak of the lattice boom. These adaptations showcase the versatility and engineering behind piling machines.
Nevertheless, the key feature of a piling rig is its specialized attachment, which grips and drives the pile into the ground. In this article, we explore the different types of these attachments, their specific uses, and the distinct characteristics of various piling machines.
Types of Piling Machines
The evolution of piling machines has resulted in several types, each suited to specific construction tasks. The most commonly used machines today include diesel hammers, vertical travel lead systems, hydraulic hammers, hydraulic press-ins, and vibratory pile drivers/extractors.
Diesel Hammers
Modern diesel pile hammers function like large two-stroke diesel engines. The key element is the piston, which serves as the weight, while the cylinder is attached to the pile. The process begins by raising the piston, which draws air into the cylinder. Diesel fuel is injected, and as the piston falls, the mixture ignites, transferring energy to the pile head. This cycle repeats, driving the pile deeper with each stroke.
Vertical Travel Lead Systems
These systems come in two main types: box leads, common in the Southern U.S., and spud leads, which are more typical in the Northern U.S., Canada, and Europe. The choice between these systems depends on regional preferences and project requirements.
Hydraulic Hammers
Hydraulic hammers offer a modern, environmentally friendlier alternative to diesel and air hammers. They drive steel, concrete, and timber piles with less noise and pollution. Though quieter overall, the impact noise when the hammer strikes the pile can be comparable to diesel hammers.
Hydraulic Press-Ins
These machines use hydraulic rams to press piles into the ground, making them ideal where minimizing vibration is essential. They can be fitted to conventional rigs, enabling simultaneous pressing of sheet piles or mounted on existing piles for increased force application. This method is highly precise for pile installation.
Vibratory Pile Drivers/Extractors
Vibratory pile drivers, powered by hydraulic motors and equipped with counter-rotating eccentric weights, deliver vertical vibrations to the pile. These machines are particularly useful in noise-sensitive areas or where limited vertical clearance is an issue. They can be attached to cranes or excavators and are adjustable to suit different soil conditions and project needs.
The Importance of Piling Machines

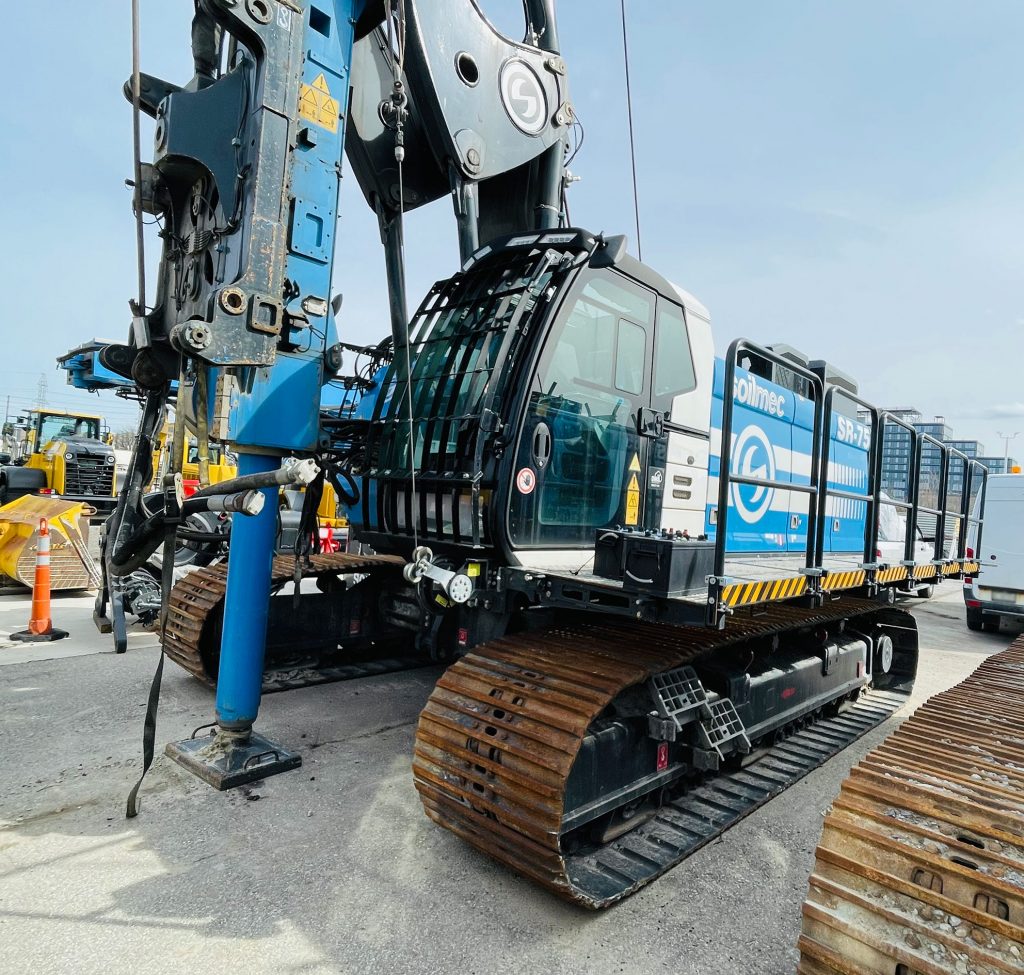

Piling machines, particularly piling rigs, are indispensable in modern construction due to their ability to create deep foundations. Piling rigs, which resemble large track-mounted drills, are crucial for foundation projects that require drilling through various ground types such as sand, clay, or rock. These rigs can be equipped with specialized tools like short screws for dry soil, rotary buckets for wet soil, or core drills for hard rock formations.
Deep foundations are essential when surface soils cannot bear a building’s load. Skyscrapers and other large structures often require piling machines to transfer weight deep into the earth. Geotechnical engineers recommend deep foundations to manage high loads, poor surface soil, or site constraints. There are several types of deep foundations, including piles, piers, drilled shafts, and caissons, each selected based on specific building needs and site conditions.
Piles, commonly used in deep foundations, are driven into the ground and made from materials like timber, steel, or reinforced concrete. Piling machines are critical for projects such as bridges, expressways, industrial buildings, and seismic retrofitting. In these cases, pile foundations distribute the weight across multiple piles connected by a pile cap, ensuring structural stability.
Overall, piling machines are fundamental to the construction of deep foundations, providing essential support for a wide range of structures, from residential buildings to massive infrastructure projects.
