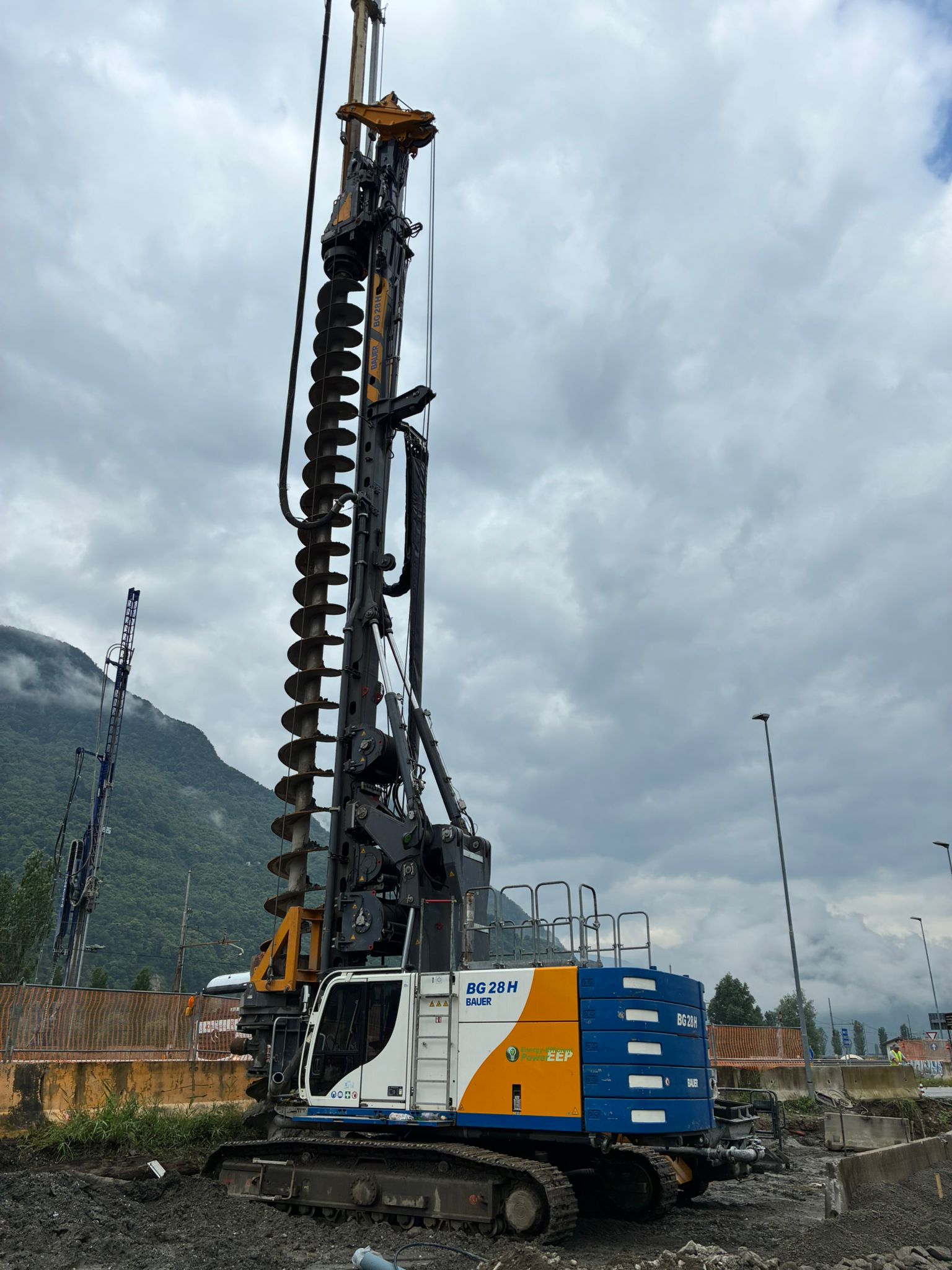

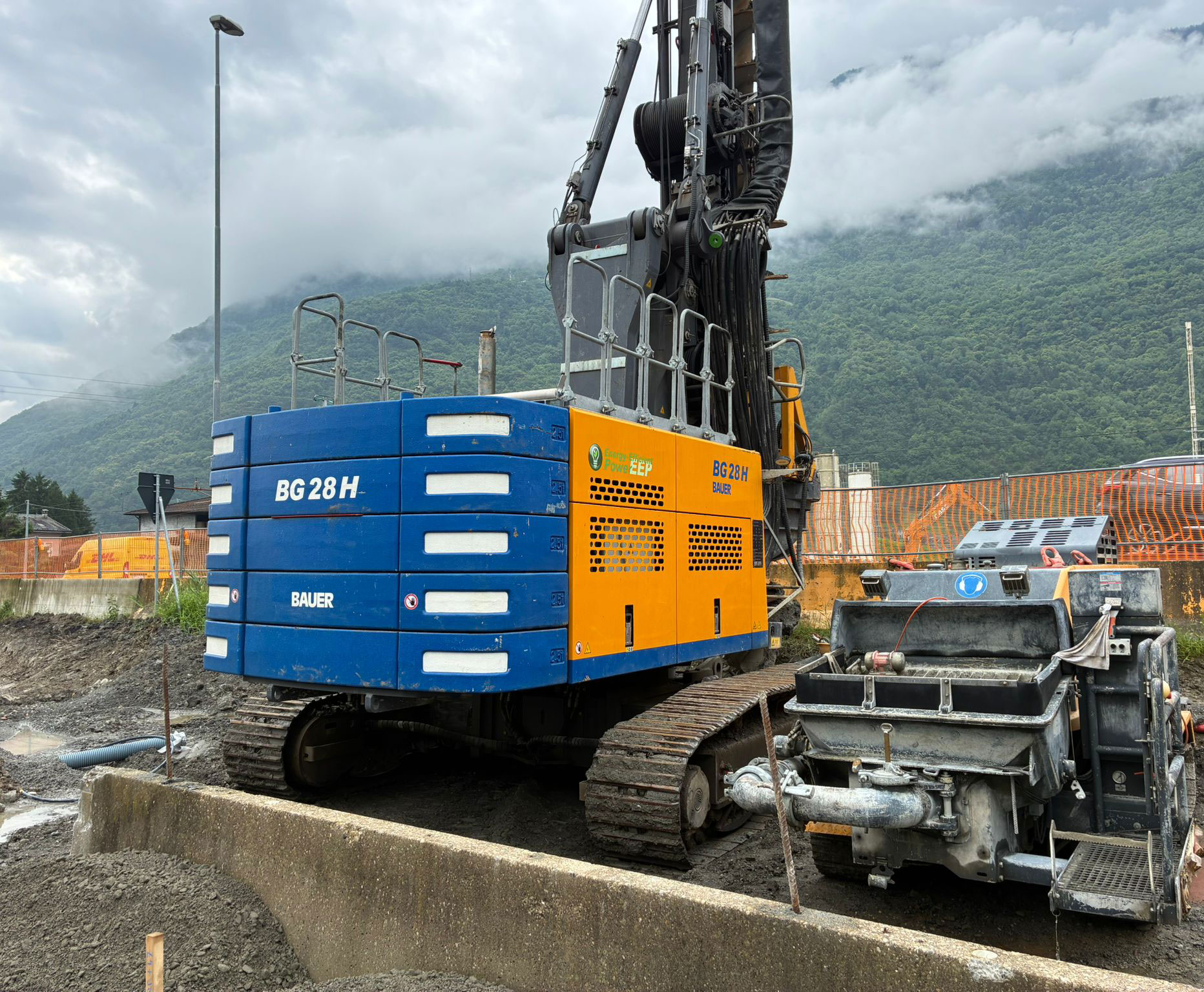

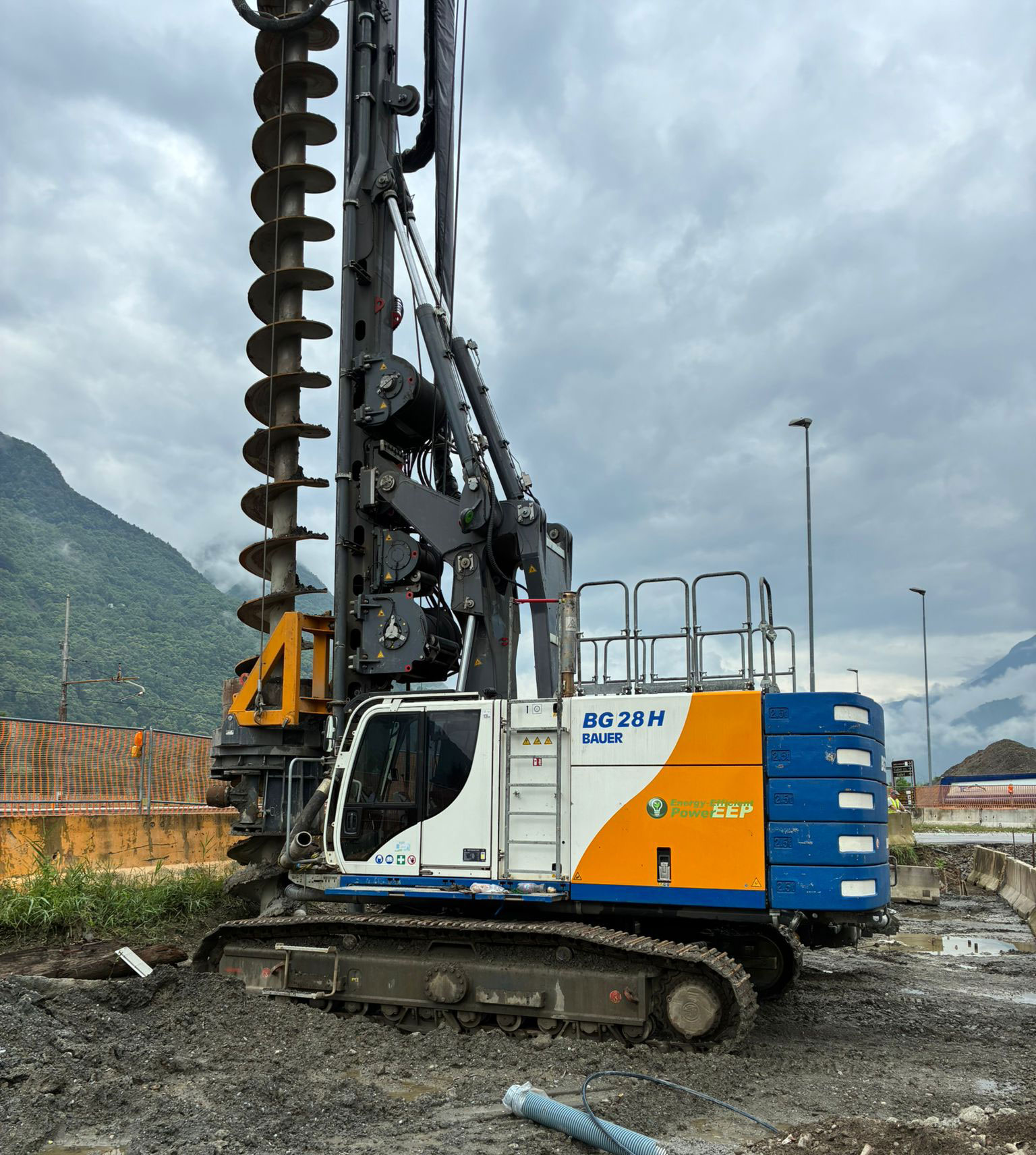

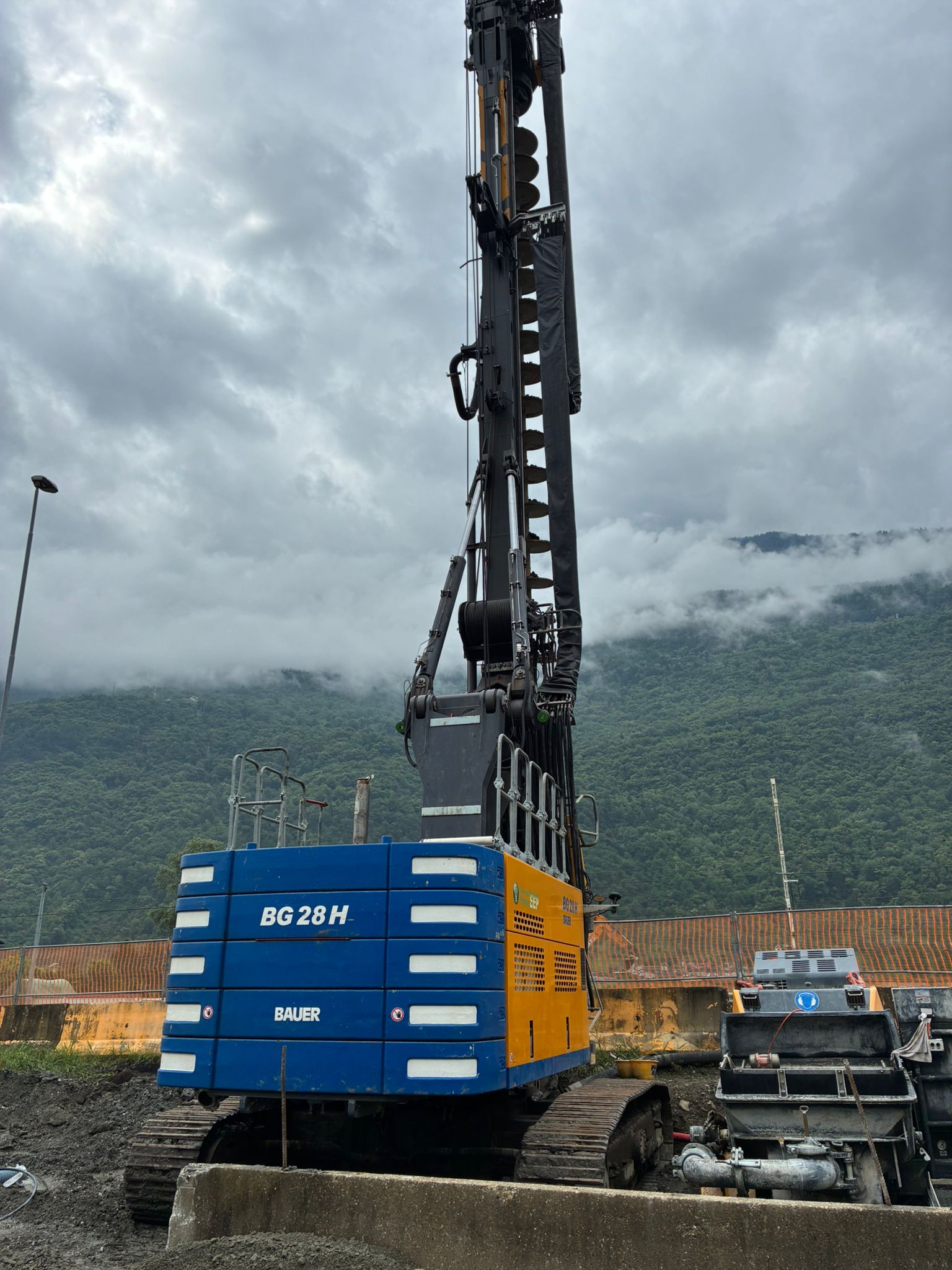

Bauer BG 28H Rotary/CFA Piling Rig

Description

Used Bauer BG 28H Rotary/CFA Piling Rig for sale.

12,912 Hours

Product Capabilities:

Bored Piles

Continuous Flight Auger (CFA) Piles (CFA Kit included)

Max. Drill Depth (Bored): 73.48m (w/ Unlocked 72.0m Kelly Bar)

Max. Diameter (Bored): 2,000mm (w/ 1,400mm Drill Axis)

Max. Drill Depth (CFA): 19.5m

Max. Diameter (CFA): 1,200mm

Further Specifications:

Upper Carriage: BS 80

Under Carriage: UW 120 A

Engine: CAT C15 (354 kW @ 1,850 rpm)

Rotary Head: KDK 275 S

Counterweights: (5.00 + 10.3)t

Max. Working Weight (Bored): 118.5t (w/ 72.0m Kelly Bar)

Max. Working Weight (CFA): 121.3t (w/ Ø1,180mm & 10.5m Kelly Ext.)
