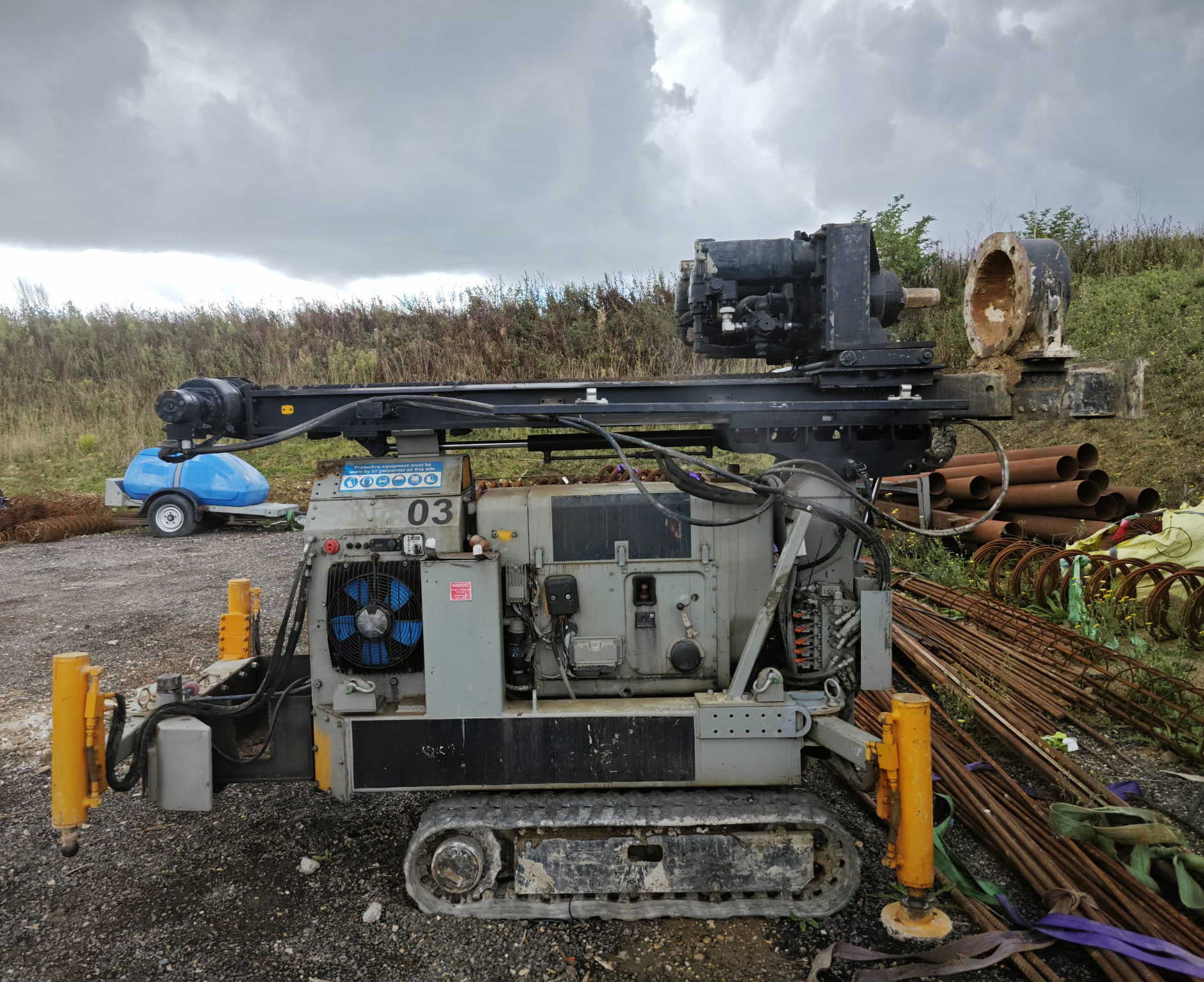

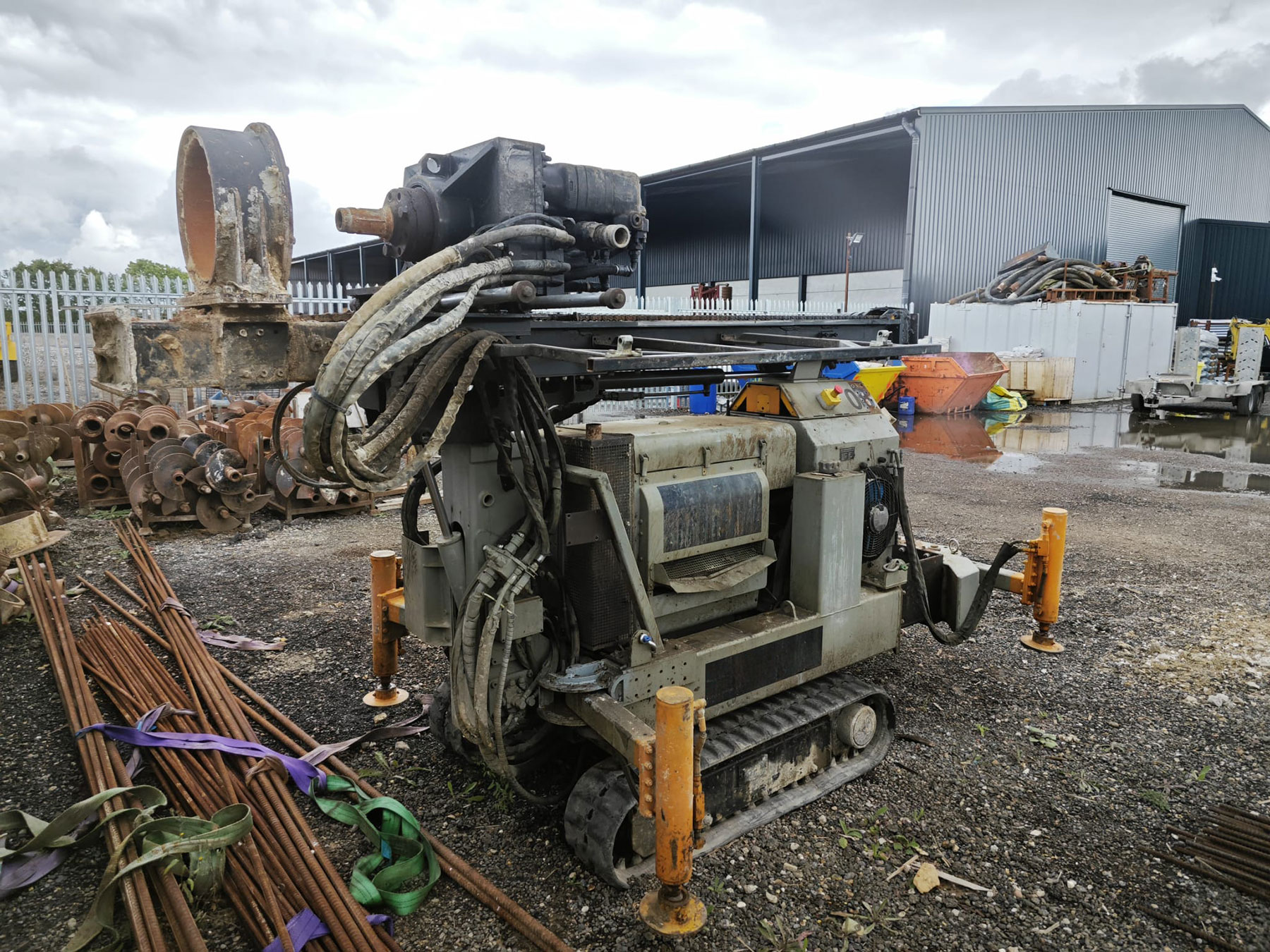

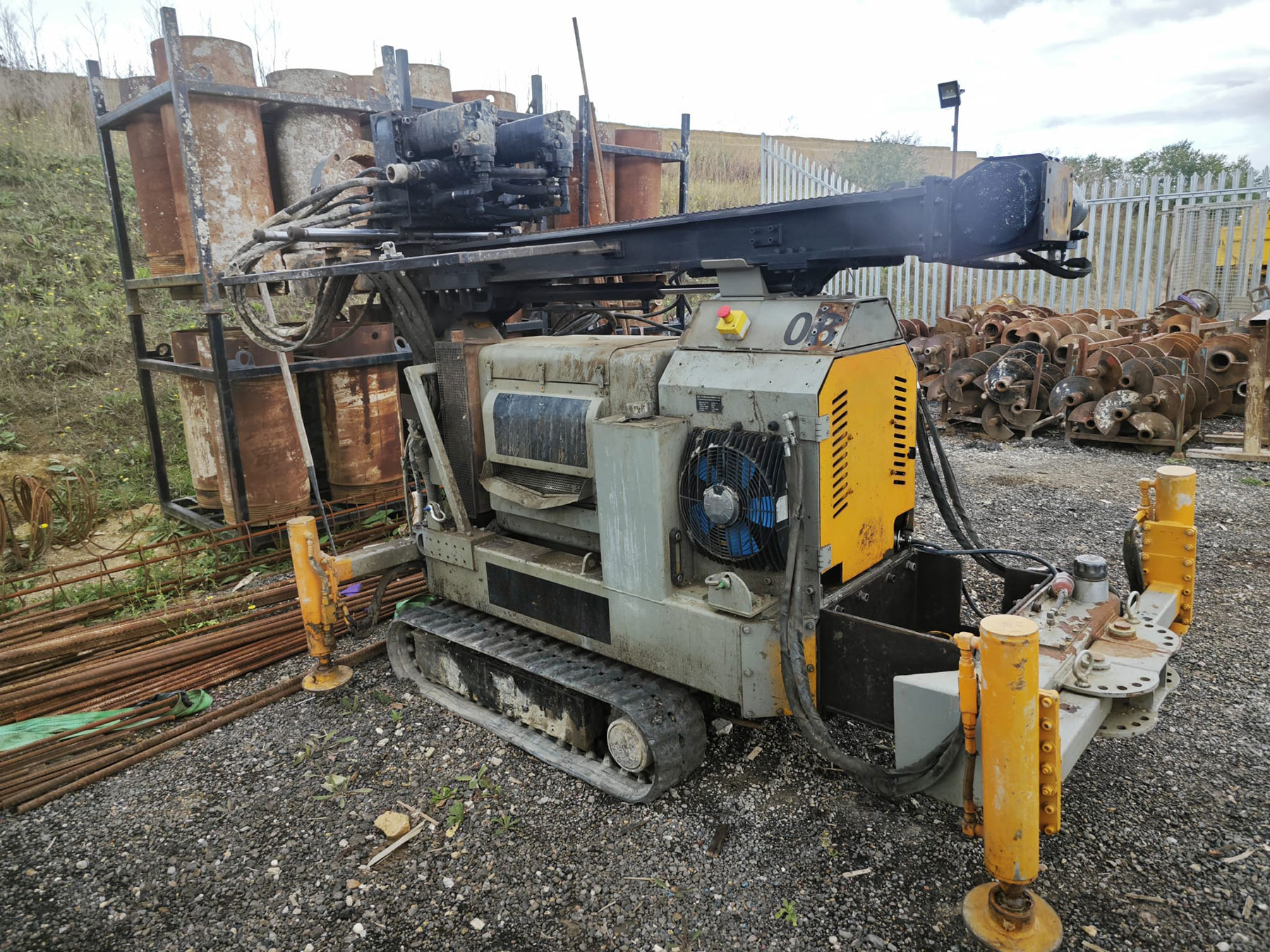

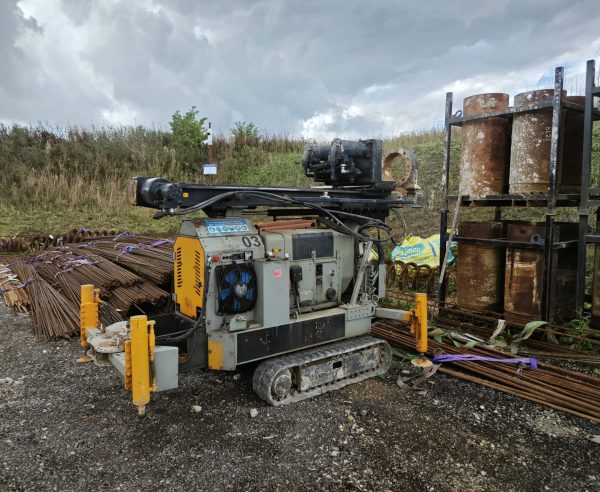

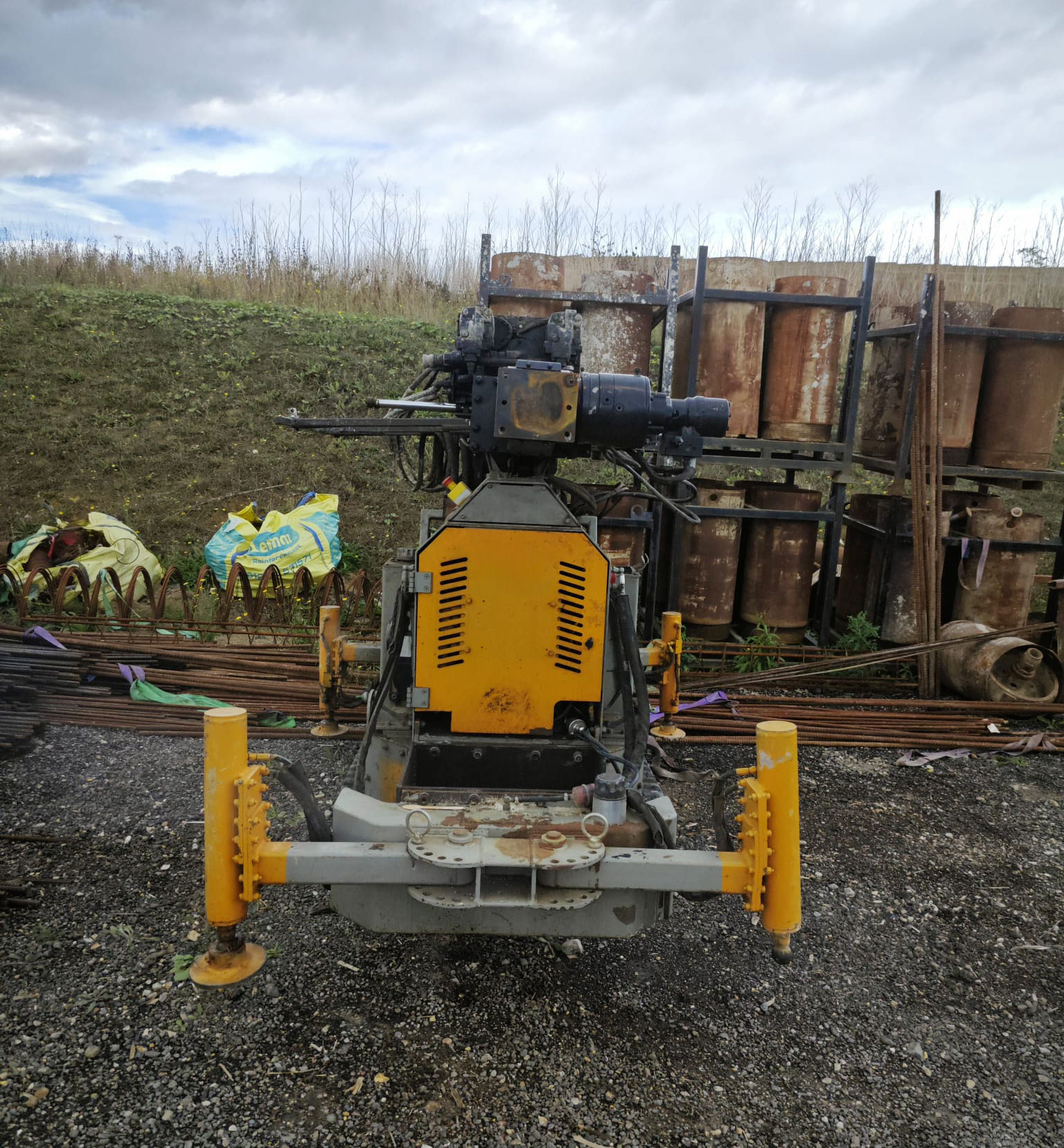

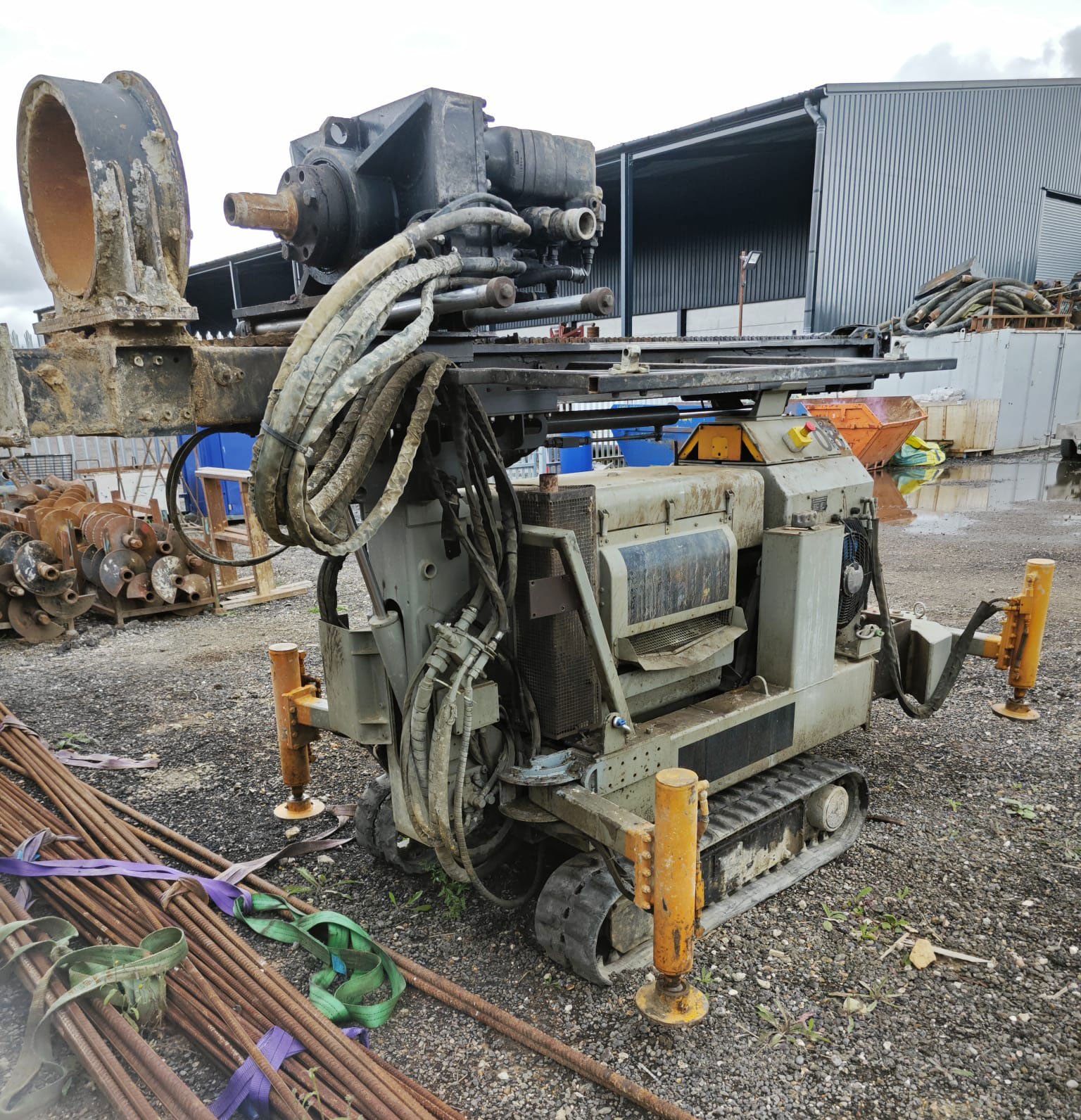

Cobra T-15 Micro Piling Rig

Description

Used Cobra T-15 Micro Piling Rig for sale.

1,656 Hours

Technical Specifications:

Engine: HATZ Super Silent 65 kw /80HP

Mast: Tilting Max.

Diameter Holes: 350 mm

Casings: 340 mm

Tracks: Rubber / Adjustable Controls: Scanreco Remote Control

Accessories / Capabilities:

Hydraulic Clamps Sideshift

Winch: 300Kg

Stroke: 1800/1200

Max Torque: 15000 Nm

4 speeds: 90/70/50/30 rpm

Extraction Force: 8000 kg

Travel Speed: 7/10 KmH

Ground Bearing Pressure: 6 PSI

Dimensions:

Length: 2500 mm

Min Width: 950 mm

Max Width: 1200 mm

Working Height: 3250mm

Working Height with Winch: 3500 mm

Reduced Working Height: 2750mm

Transport Height: 2200mm

Weight: 3100 kg
