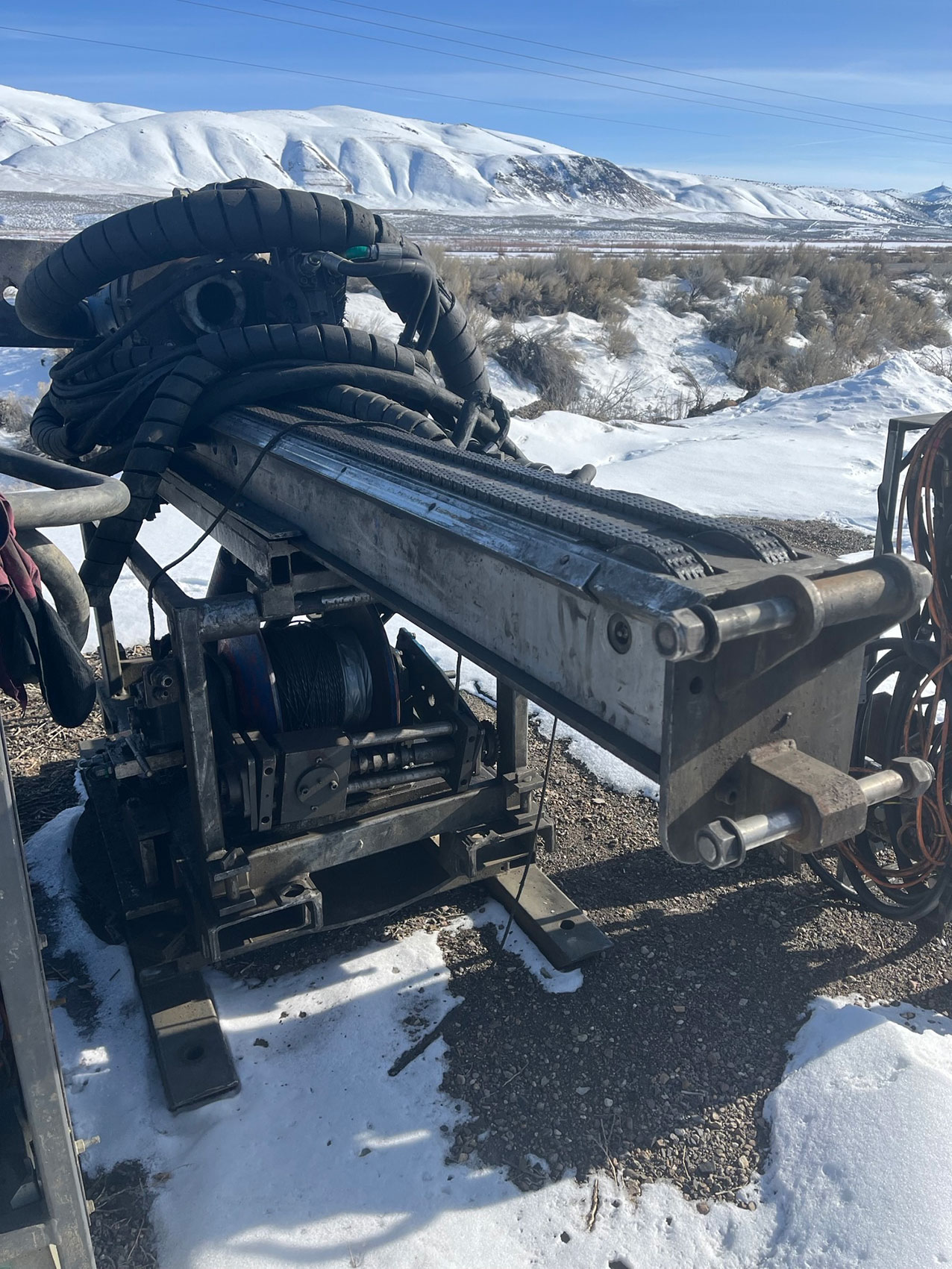

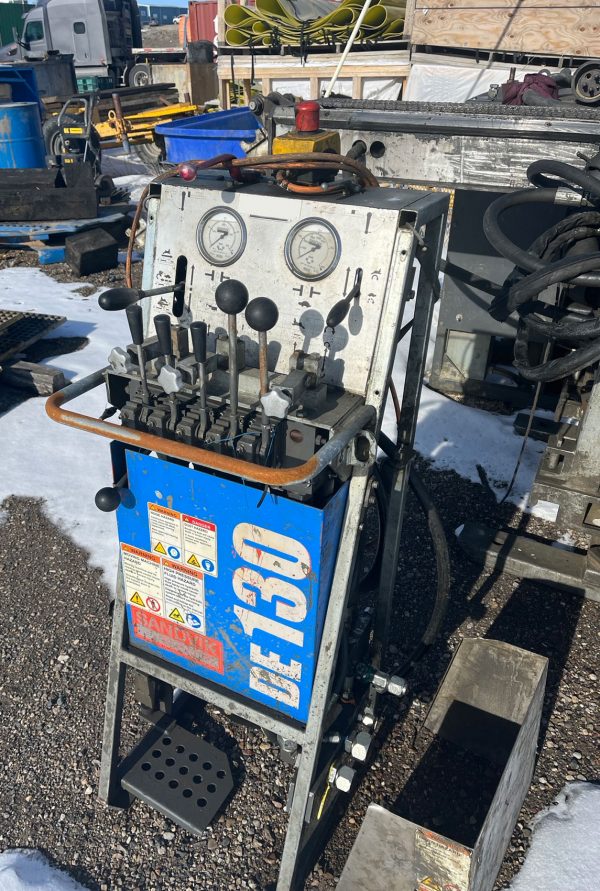

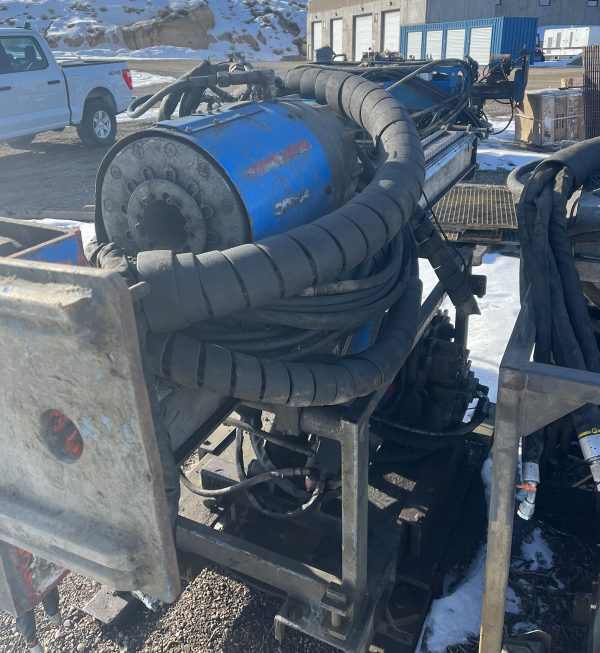

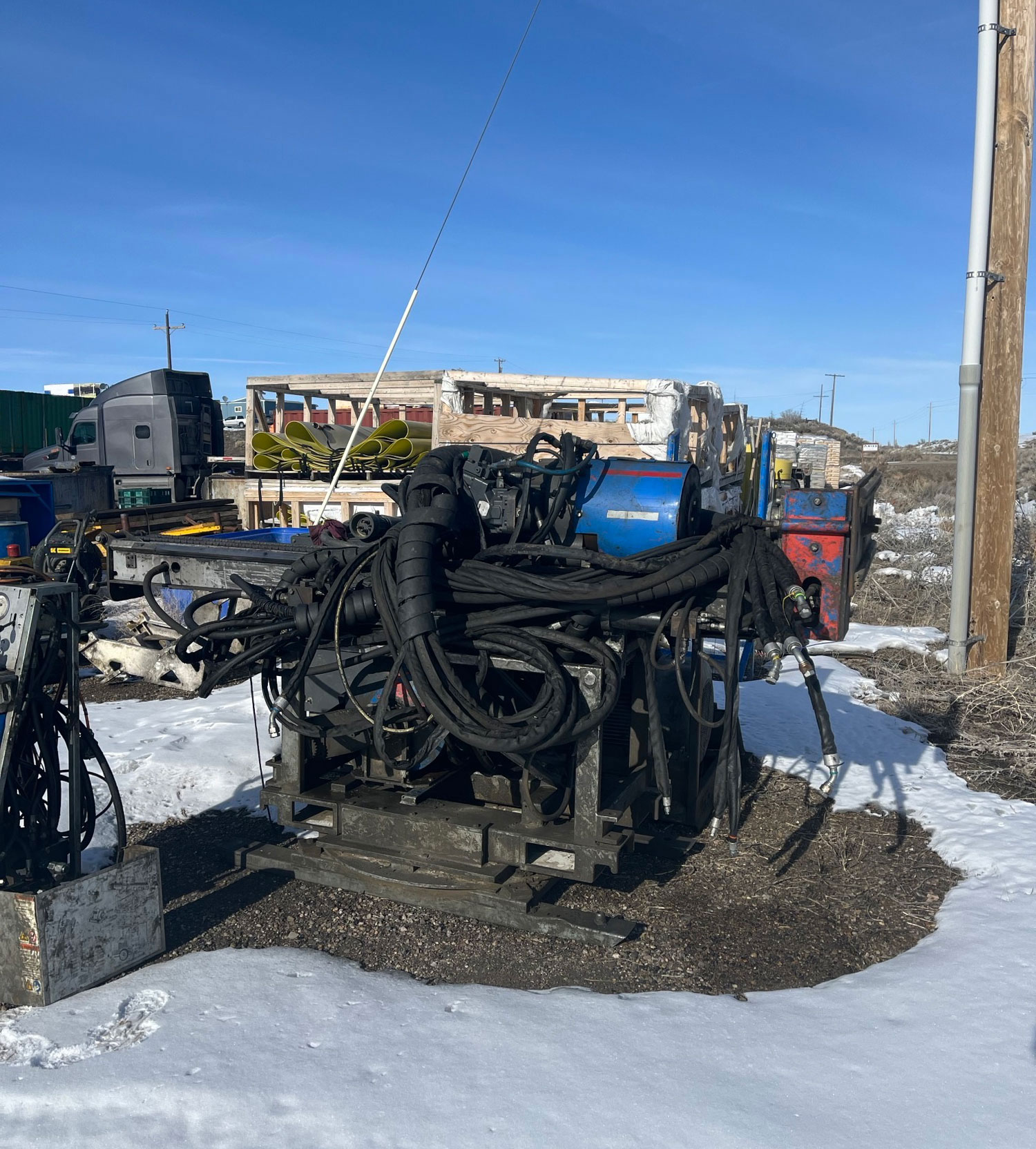

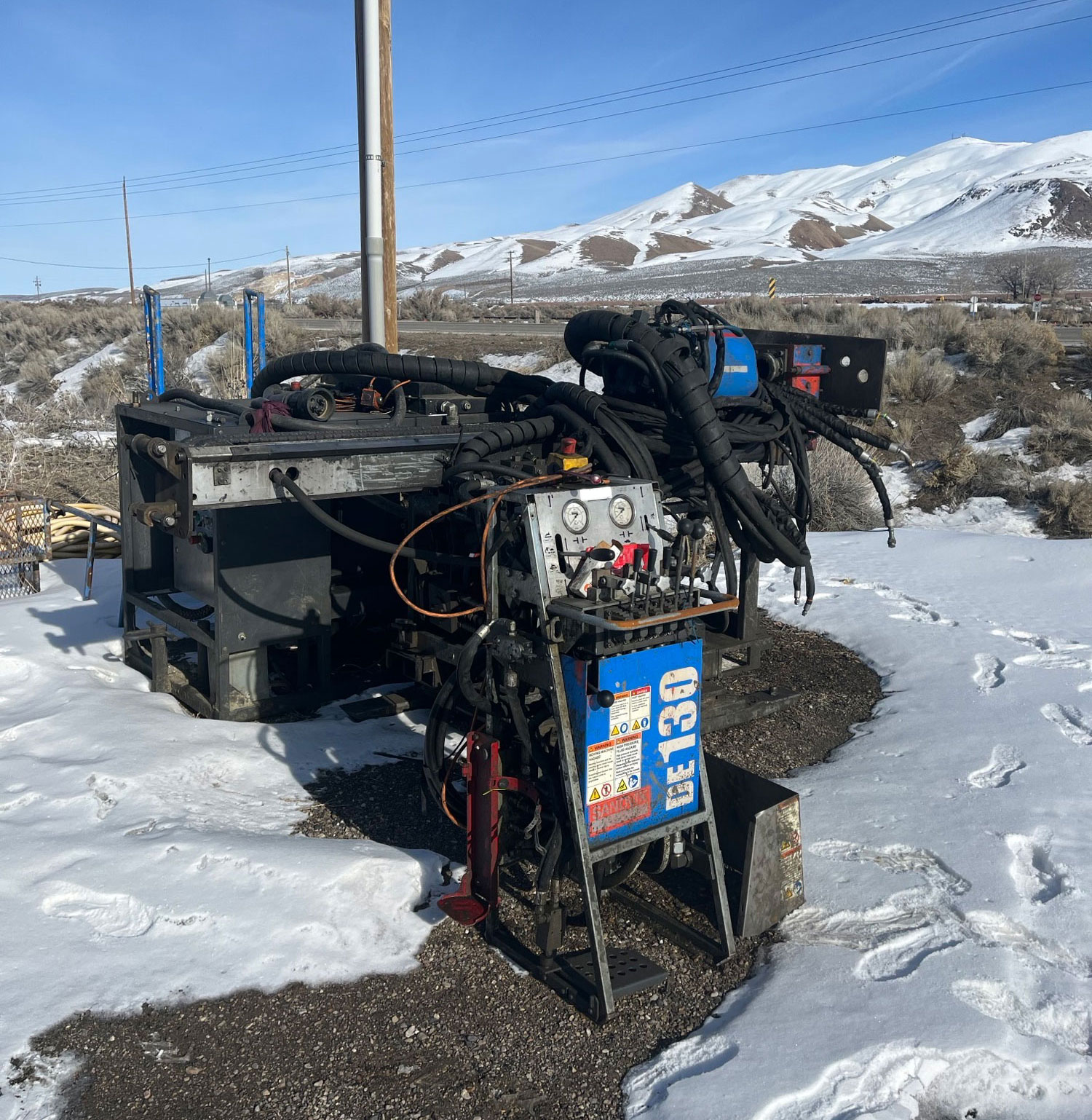

Sandvik DE130 Rock Drill

Description

Used Sandvik DE130 Rock Drill for sale.

0 Hours

Condition: Used, Reported in Great Condition, Well Maintained

Brand New HQ Head

Freshly Rebuilt Head by Sandvik and Hasn’t Been Used Since

Drill is Ready to be Dispatched onto a Long-Term Project

Will Include Jaws for HQ and NQ Drilling

Technical Data

Depth Capacity:

(N): 815m (2,674ft

(H): 400m (1,312ft)

(B): 800m (2,624ft)

(WL56): 1,200m (3,936ft)

Lift Capacity: 1280m (4200ft) with WL56 Rod

Rotation Unit N Size: 77mm (3in)

Rotation Unit H Size: 103mm (4in)

Torque:

Max Torque: (N High Speed): 550Nm (406 lbf/ft)

Max Torque (N High Torque): 800Nm (590 lbf/ft)

Max Torque (H): 940Nm (693 lbf/ft)

Speed:

Max RPM (N High Speed): 1,600 RPM

Max RPM (N High Torque): 1,100 RPM

Max RPM (H): 1,100 RPM

Feed Force: 46.1 kN /4.7 T (10,360 lbf)

Feed Rate, Rod Running Max: 1.1m/s (43in/s)

Feed Rate, Drilling Max: 0.04m/s (1.5in/s)

Pull Force: 61.5 kN /6.3 T (13,820 lbf)

Feed Length (Stroke): 1,700mm (5ft 7in)

Total Length: 3,065mm (10ft 1in)

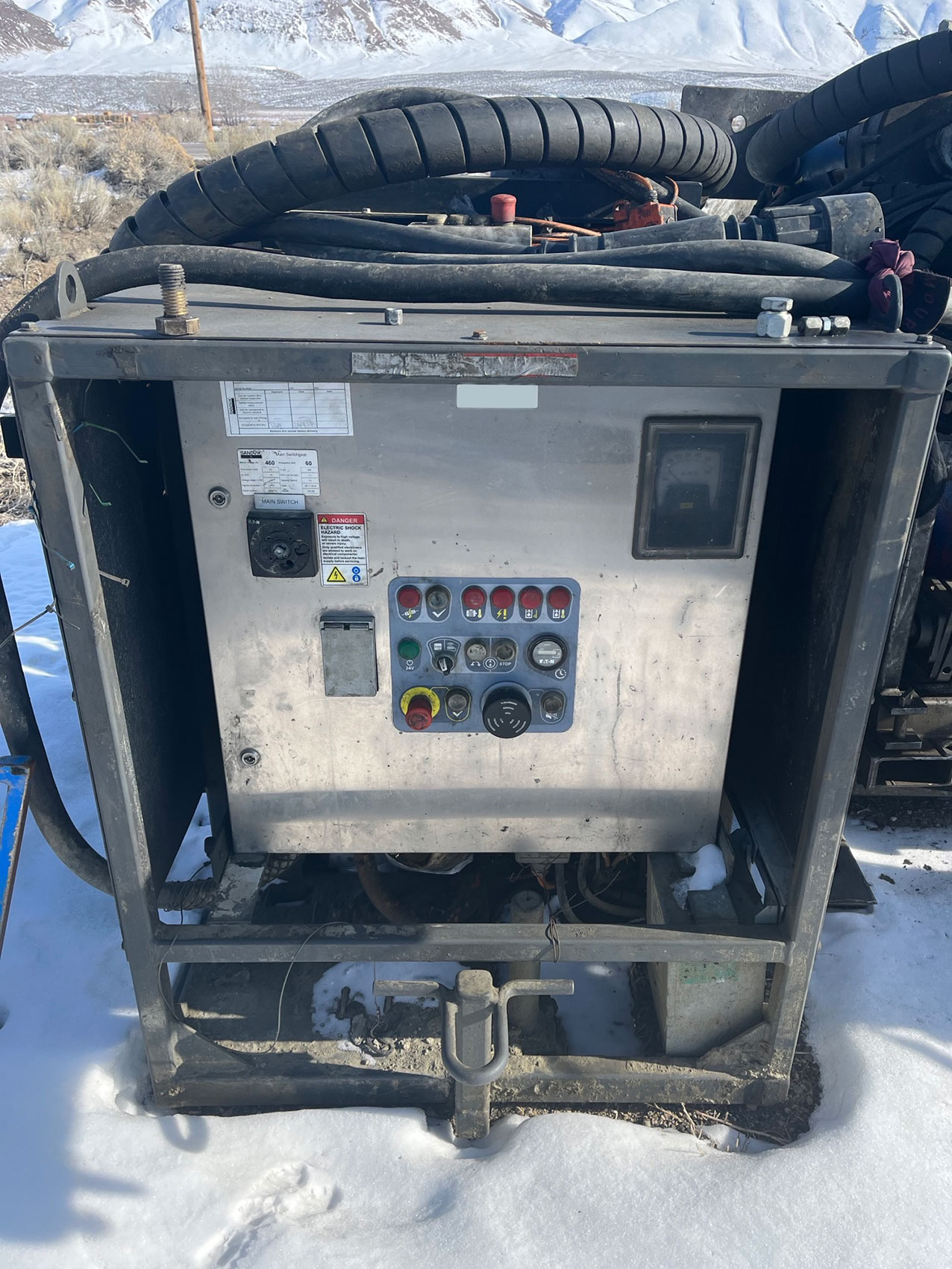

Power Unit: 55kW (75HP)
